External Buzzer or Siren Connections for Door Open Notification

Thursday, August 01, 2019 FingerTec 0 Comments



Introduction
For the safety or requirement of an industry, door always needs to be closed or else, it will risk intrusion, damage or loss of a product or an environment. For example, the storehouse storing valuable things, a server room where the temperature needs to be maintained, the dust-free rooms and etc. Hence, the clarity of knowing that the room is always need to be closed neatly is mandatory. By adding a buzzer or an alarm on the door, this purpose can be achieved.

Process
1- The buzzer or siren can be installed next to the person who is in charge for the room or space where maybe the person desk or office far from that.
2- A loud buzzer or siren can be used for large or noisy environment

Components

Wiring Diagrams
Below is the example of connection using the AdapTec Plus when using 12VDC buzzer/siren


Below is the example connection using the AdapTec Plus using 240VDC buzzer/siren

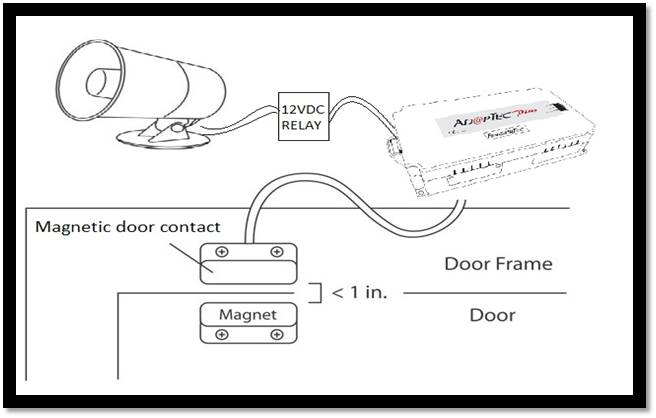

Installation Example


Note: If some of the screenshots or steps viewed here are different from the ones in the current system, this is due to our continuous effort to improve our system from time to time. Please notify us at info@timeteccloud.com, we will update it as soon as possible.
